32mm HDPE pipe fittings are key connection components of low-pressure fluid delivery systems and are widely used in water supply and drainage, gas, agricultural irrigation and industrial pipeline systems. Its advantages include:
Corrosion resistance: resistant to acid, alkali, salt spray, and microbial corrosion, with a service life of more than 50 years.
Lightweight: density of 0.95g/cm³, only 1/8 of metal pipe fittings, and installation efficiency increased by 40%.
32mm HDPE pipe fittings types and standards
1. Common pipe fitting types
| Type | Function | Applicable Scenario |
| Coupling | Straight connection of same-diameter pipes | Pipeline extension or repair |

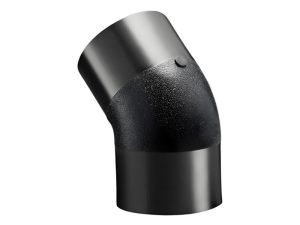

| Elbow | Change flow direction (90°, 45°, etc.) | Bypassing obstacles |
| Tee | Diverting or combining flow | Branch pipe connection |
| Flange | Connection to valves/equipment | Pump stations, filtration systems |
2. International and domestic standards
ISO 4427: stipulates that the burst pressure of HDPE pipe fittings is ≥1.6MPa (PN16 grade).
GB/T 13663.2-2018: China’s HDPE pipe fittings standard for water supply requires the tensile strength of the weld zone to be ≥25MPa.
Comparison of connection technologies
1. Butt fusion
Process parameters:
Heating plate temperature: 200±10℃
Welding pressure: 0.15-0.3MPa
Cooling time: 32mm pipe fittings ≥5 minutes
Advantages: Joint strength ≥ parent material, zero leakage risk.
2. Electrofusion
Applicable scenarios: narrow space or emergency repair work.
Key steps:
Scrape off the oxide layer (depth 0.1-0.2mm)
Electric heating (voltage 39.5V±10%, time 90-120 seconds)
3. Mechanical connection
Clamp-type joint: allows ±5° deflection, suitable for temporary pipelines.
Engineering application cases
1. Agricultural drip irrigation system (Israel)
Fitting configuration: 32mm HDPE tee + pressure compensation dripper
Water-saving effect: 30% less water consumption than traditional channel irrigation.
2. Building drainage renovation (a community in Shanghai)
Solution: 32mm HDPE electric fusion elbow to replace cast iron pipe
Benefits: Construction time is shortened by 60% and cost is reduced by 45%.
Key points for selection and installation
1. Selection formula
Flow calculation (full pipe flow):
Q = π×(D/2)²×v
(32mm pipe at v=1m/s, Q≈0.8L/s)
2. Installation specifications
Hot-melt operation: Preheat the pipe when the ambient temperature is <5℃.
Underground laying: Sand cushion thickness ≥100mm, avoid sharp stones.
Common problems and solutions
Problem 1: Cold welding in the welding area
Cause: Insufficient heating time or uneven pressure.
Countermeasures: Use an infrared thermometer to monitor the temperature of the heating plate.
Problem 2: Water leakage in the electrofusion joint
Reason: The oxide layer was not completely removed.
Solution: Use a rotary scraper to treat the surface.
Market data and trends
Price range: 32mm HDPE straight connector 3-8 yuan/piece (brand difference).
Technology trends:
Smart pipe fittings: built-in RFID tags to track life cycle.
Recycled HDPE: environmentally friendly pipe fittings (recycled materials account for ≥30%).
32mm HDPE pipe fittings have become the standard configuration of modern pipeline engineering due to their reliable connection performance and low cost advantages. In the future, with the application of automated welding equipment and bio-based materials, its market penetration rate will be further improved.
