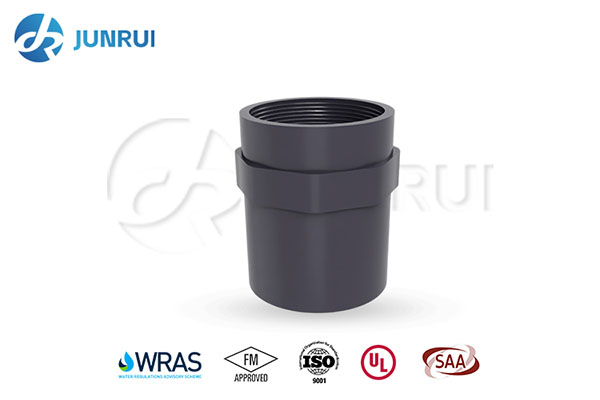

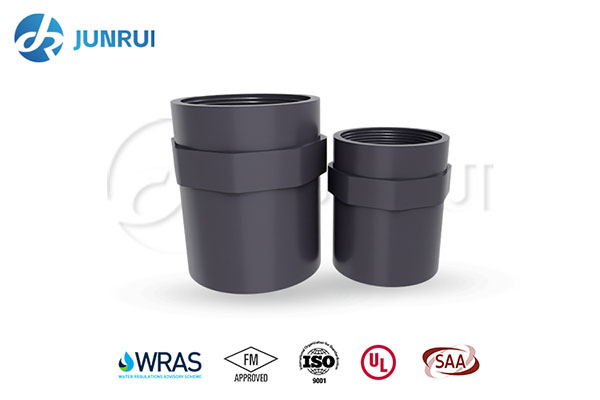

PVC Female Adaptor

Product Overview

PVC Female Adaptor (also known as PVC female threaded joint) is a pipe connector made of high-quality polyvinyl chloride (PVC) material, mainly used for turning, branching or extending PVC pipes. This product has excellent corrosion resistance, sealing and easy installation, and is widely used in water supply and drainage, chemical industry, agricultural irrigation, power communication and other fields.

Features of PVC Female Adaptor

1. Strong corrosion resistance

It has good tolerance to acids, alkalis, salts and various chemical media, and is suitable for corrosive environments.

2. Excellent sealing performance

The thread design is precise, and it can effectively prevent leakage when matched with sealing tape or gasket.

3. Lightweight and durable

Light weight, high strength, excellent anti-aging performance and long service life.

4. Easy installation

No special tools are required, and the connection can be completed by manually tightening, which greatly saves construction time.

5. Economical and affordable

The price is lower than that of metal joints, and the cost performance is extremely high.

Specifications

Material: UPVC (rigid PVC), CPVC (chlorinated PVC)

Connection: internal thread (female) socket/external thread (male)

Size range: DN20~DN110 (customization supported)

Pressure level: PN10~PN16

Applicable temperature: -10℃~+60℃ (UPVC), -20℃~+95℃ (CPVC)

PVC Female Adaptor Application scenarios

Building water supply and drainage: tap water pipes, sewage discharge systems

Chemical pipelines: corrosive media transportation

Agricultural irrigation: drip irrigation, sprinkler system connection

Electric power communication: cable protection tube sealing

PVC Female Adaptor Installation guide

Clean the pipe port to ensure that there are no impurities.

Wrap sealing tape or apply PVC glue (socket type).

Align the thread and tighten manually to avoid cracking caused by excessive force.

What is the purpose of a female adapter?

1. Pipeline extension and docking

Extending pipeline: Through the screw connection of the female joint and the PVC Male Adaptor (external thread), the PVC pipe can be quickly extended, which is suitable for supplementary connection when the pipe length is insufficient.

Segment connection: Segment installation in complex pipelines is convenient for maintenance or replacement of local pipelines.

2. Branch or turn connection

Three-way/four-way branch: With multi-way pipe fittings (such as PVC three-way female joints), the pipeline can be diverted or merged.

Change direction: Combine with elbow female joints to adjust the direction of the pipeline (such as 90°, 45° turn).

3. Interface conversion between equipment and pipeline

Equipment installation: Connect the threaded interface of equipment such as water pumps, valves, filters, etc. to achieve the transition between PVC pipes and metal/plastic equipment.

Adaptation of different materials: Through the conversion of female joints, it is compatible with pipes of different materials (such as PVC to PPR, metal pipes).

4. Sealing and leak prevention

Close the pipe end: With the plug female joint, the end of the pipe can be temporarily or permanently closed.

High-pressure seal: threaded structure + sealing tape/gasket to ensure that liquid or gas does not leak (applicable to low-pressure systems).

5. Special scene applications

Agricultural irrigation: connect drip irrigation belts, sprinklers, etc. to achieve flexible pipe layout.

Chemical system: corrosion-resistant design to maintain sealing when transporting acid and alkali media.
