PVC Male Adaptor
Raw Materials: PVC
Standard: ISO 4427/ EN12201/ AS/NZS 4130/ SANS 4427/ ASTM F714/ ASTM D 3035
Size: 20mm-110mm (Can Be Customized)
Pressure: SDR11-PN16 Bar, SDR13.6-PN12.5 Bar, SDR17-PN10 Bar, SDR21-PN8 Bar, SDR26-PN6 Bar
Certificate: ISO 14001, ISO 9001, OHSAS 18001, CE BS EN 12001 Certification
Contact Us
- +86 15093100892
- inquiry@phtopindustry.com
- No.86 Jingsan Rd, Jinshui District, Zhengzhou City 45000, china
product category
Product Overview
PVC Male Adapter is a pipe fitting used to connect PVC pipes, usually with external threads (threaded end) or spigot ends, which can be used with Female Adaptor, valves, flanges or other threaded interface equipment. This product is made of high-strength polyvinyl chloride (PVC) material, with the characteristics of corrosion resistance, good sealing, and convenient installation. It is widely used in water supply and drainage, chemical industry, agricultural irrigation, construction pipelines and other fields.
PVC Male Adaptor Features
1. High strength and corrosion resistance-made of high-quality PVC material, acid and alkali resistance, rust resistance, suitable for a variety of liquid medium transportation.
2. Sealing and leakproof-precise thread design, with sealing tape or glue to ensure no leakage at the connection.
3. Easy installation-standard thread or socket structure, can be quickly connected with female adapters, flanges or pipes.
4. Lightweight design-light weight, easy to carry and construct, reducing installation costs.
5. Long life-aging resistance, UV resistance (some models include UV protection), suitable for long-term use indoors and outdoors.
Product specifications
Material: PVC, UPVC (rigid PVC), CPVC (high temperature and pressure resistant type)
Connection method:
Threaded type (standard threads such as NPT, BSP)
Socket type (adhesive or hot melt connection)
Size range: DN20~DN110
Pressure level: PN10, PN16 (some models support higher pressure)
Color: white, gray (customizable according to needs)
Main application scenarios
1. Water supply and drainage system: connect PVC pipes with valves, faucets, water pumps and other equipment.
2. Chemical pipelines: acid and alkali resistant, suitable for chemical liquid transportation.
3. Agricultural irrigation: with drip irrigation and sprinkler irrigation systems, easy to disassemble and maintain.
4. Building pipelines: used for connection of sewer pipes, ventilation pipes, cable protection pipes, etc.
5. Industrial equipment: as a pipeline conversion joint, adapted to different interface requirements.
How do you install a PVC male adapter?
Threaded male connector:
Wrap raw tape (PTFE) around the thread end or apply thread sealant to ensure sealing.
Screw into the female connector or equipment interface to avoid cracking caused by over-tightening.
Socket male connector:
Apply PVC special glue to the pipe fittings and pipe sockets, quickly insert and hold for 10 seconds.
Stand and cure (usually water test can be performed after 24 hours).
Purchase suggestions
1. Select the material according to the medium: UPVC can be used for ordinary water systems, and CPVC is recommended for high temperature or chemical media.
2. Matching pressure level: PN16 or higher specifications are used for high pressure environments (such as pump rooms).
3. Pay attention to the interface standard: confirm the thread type (NPT/BSP) or socket size to avoid incompatibility.
Why choose our PVC Male Adaptor?
1. Strict quality inspection-each batch of products is tested for water pressure and air tightness to ensure zero defects.
2. Complete specifications-support non-standard customization to meet special working conditions.
3. High cost performance-factory direct supply, obvious price advantage and fast delivery.
What are PVC male adapters used for?
1. Connection between pipes and equipment
Connect valves/faucets: connect PVC pipes to metal or plastic valves, faucets, water pumps and other equipment (such as irrigation systems, tap water pipes).
Connect flanges/filters: In industrial pipes, male joints can be adapted to flanges or filter equipment for easy disassembly and maintenance.
2. Transition of pipes of different materials
PVC pipe to metal pipe: connect PVC pipes and metal pipes such as galvanized pipes and copper pipes through threaded male joints (commonly used in building water supply and drainage renovation).
PVC pipe to hose: use quick-twist joints or hose clamps to connect sprinkler hoses, industrial water hoses, etc.
3. Repair and extension of pipeline systems
Repair damaged pipes: install male joints at the break of the pipe, and quickly repair them with female joints or sleeves.
Extend pipes: increase the length of the pipe through threaded or socket connections (such as underground drainage pipe extension).
4. Adapt to different interface standards
Convert thread specifications: such as NPT (American standard) to BSP (British standard), to solve the compatibility problem between imported equipment and local pipes.
Reducer connection: Some male connectors are designed as reducer structures (such as DN32 to DN25) for pipe diameter conversion.
5. Specific scenario applications
Chemical pipelines: Acid and alkali resistant PVC male connectors are used to transport chemical agents (CPVC material must be selected).
Agricultural irrigation: Connect drip irrigation belts and nozzles to facilitate disassembly and layout adjustment.
Ventilation system: Connect fans or smoke exhaust equipment in PVC ventilation ducts.

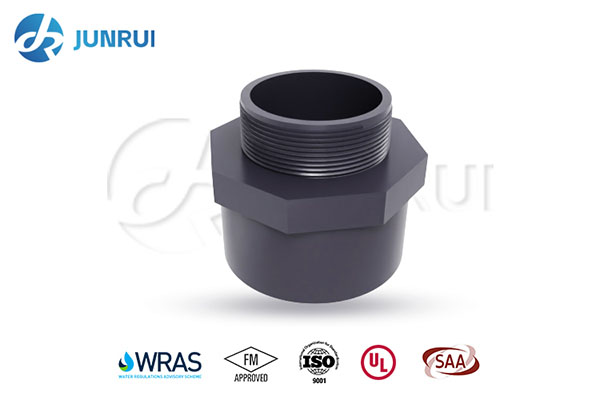

PVC Male Adaptor (3)
What is the difference between male and female adapters in PVC?
1. Structural Differences
| Comparison Item | PVC Male Adapter | PVC Female Adapter |
| Connection Type | Male threads or spigot end (to be inserted into other fittings) | Female threads or socket end (to receive male adapter) |
| Appearance | One end features protruding threads or spigot | One end has recessed threads or socket |
| Common Forms | Straight type, reducing type (for diameter change) | Straight type, union type (detachable) |
2. Functional Differences
| Comparison Item | PVC Male Adapter | PVC Female Adapter |
| Main Function | To be inserted or screwed into other fittings/devices | To receive or hold a male adapter or other fittings |
| Typical Applications | – Connect to valves or faucets – Connect to metal flanges or equipment | – Fix pipe ends – Serve as a detachable maintenance joint |
| Matching Scenarios | Active connection end (inserting or screwing in) | Passive connection end (receiving or accepting other parts) |
3. Installation Differences
| Comparison Item | PVC Male Adapter | PVC Female Adapter |
| Connection Target | Screwed into female adapters, valves, or equipment with internal threads | Receives male adapters, pipes, or components with male threads |
| Sealing Requirement | Threaded parts require Teflon tape or thread sealant; spigot ends need PVC cement | Female threads often sealed with gaskets or rubber rings |
| Removability | Partially removable (e.g., union-type male adapters) | Union female adapters are easier to detach (e.g., quick-release types) |
4. Common Combined Use Scenarios
Threaded Connection:
Male Adapter (external threads) + Female Adapter (internal threads) → creates a secure, sealed joint (e.g., connecting a water pump to a pipeline).
Socket/Spigot (Solvent Weld) Connection:
Male Adapter (spigot end) + Female Adapter (socket end) → bonded using PVC cement (e.g., for extending a drainage pipe).
Union/Maintenance Connection:
Male and Female Adapters paired together → allows easy disassembly for maintenance (e.g., replacing a valve).
5. How to Choose?
Choose a Male Adapter:
When you need to connect to internal threads or insert into a socket (e.g., installing a faucet).
Choose a Female Adapter:
When you need to fix the end of a pipe or connect to a male-threaded component (e.g., connecting to a hose or filter).
Product Specification
| Product name | PVC Male Adaptor |
| Size available | DN20mm, 25mm, 32mm, 40mm, 110mm |
| Pressure Rating | SDR11，SDR13.6，SDR17，SDR21，SDR26 |
| Material | PVC |
| Color available | White or Grey, or as per request |
| Sample available | Available |
| Joint method | Solvent Cement |
