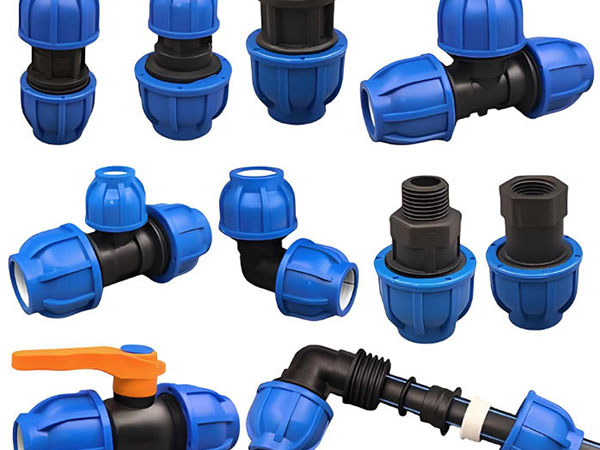

HDPE Quick Connect Fittings are a convenient connection solution designed specifically for high-density polyethylene (HDPE) piping systems. Their unique quick-lock or crimping mechanism allows for efficient installation without the need for heat or electric fusion equipment. Known for their fast installation, strong sealing performance, and easy maintenance, these fittings are widely used in temporary or removable pipe systems, such as agricultural irrigation, temporary water supply, construction water supply, and mobile transportation systems.
HDPE Quick Connect Fittings are compatible with mainstream HDPE pipe standards (such as ISO 4427 and ASTM D3035) and are suitable for PE80 and PE100 grades, providing a secure, reliable connection. They are suitable for low- and medium-pressure transmission systems and maintain excellent leak resistance and durability in challenging environments.
HDPE Quick Connect Fittings Structure and Features
HDPE Quick Connect Fittings are typically made of high-strength engineering plastic or reinforced HDPE. Their primary structure consists of a body, sealing ring, locking ring, and snap-fit system. Their design emphasizes a “plug-and-play” connection, allowing installers to connect pipes without specialized equipment. Key Features Include:
Quick Installation, Tool-Free: Connections can be completed by manual insertion, twisting, or snapping, saving over 70% installation time compared to traditional hot-melt or flange connections.
High Sealing Performance: Built-in EPDM or NBR sealing rings effectively prevent liquid leakage, ensuring a safe and stable conveying system.
Excellent Pressure Resistance: Suitable for system pressures ranging from PN6 to PN16, meeting a variety of conveying needs.
Corrosion and Chemical Resistance: Suitable for conveying water, sewage, chemical media, and some gases, suitable for harsh working environments.
Lightweight, Portable, and Reusable: Lightweight and quick to disassemble and reinstall, making it particularly suitable for mobile or reusable pipe systems.
High Adaptability: Compatible with various HDPE pipe specifications, and some models support PVC, PP, or metal pipe conversions.
Key Applications
Agricultural Irrigation Systems
HDPE quick-connect fittings are ideal for field irrigation, sprinkler irrigation, and drip irrigation systems. Their easy assembly and disassembly allows farmers to flexibly arrange or adjust irrigation routes according to the season, significantly improving irrigation efficiency.
Temporary Water Supply and Emergency Systems
On construction sites, at outdoor events, or in emergency situations, HDPE quick-connect fittings enable rapid deployment of water supply networks for short-term use or temporary pipe laying.
Municipal and Industrial Drainage Systems
Emergency bypass systems for temporary drainage, construction drainage, and pipeline maintenance require rapid deployment and ensure smooth flow.
Water Treatment and Mobile Equipment Connections
In water treatment plants, cooling systems, aquaculture, and temporary water distribution, quick-connect fittings facilitate disassembly and maintenance, reducing downtime.
Gardening and Domestic Water
HDPE quick-connect fittings are simple to use for garden sprinkler irrigation, pool refill, or home garden water supply systems, making them suitable for non-professional users.
Product Specifications and Parameters
Size Range: 20mm to 110mm (larger diameters available on request)
Pressure Rating: PN6, PN10, PN16
Sealing Ring Material: EPDM / NBR
Connection Methods: Quick Lock, Push Fit, Threaded Adapter, Compression Type
Compliant Standards: ISO 14236 / ASTM D3035 / EN 12201
HDPE Quick Connect Fittings Advantages
Extremely Fast Installation: Requires no power source, hot melt machine, or special tools, saving installation time and labor costs.
Cost-Effective: While maintaining connection reliability, the cost is lower than metal quick connectors, making them economical and practical.
Long-Term Stability: Maintains excellent mechanical strength and sealing performance even in outdoor exposure, humidity, and corrosive environments.
Global Export Quality: Our HDPE Quick Connect Fittings have been exported to South America, Southeast Asia, the Middle East, Europe, and Africa, receiving widespread customer acclaim.
Multi-Industry Compatibility: Flexible applications for diverse conveying needs, including agriculture, industry, municipal administration, and civil engineering.
Company and Export Strength
Junrui, a professional manufacturer of HDPE and PVC plastic pipe fittings in China, has over a decade of export experience, with products exported to countries such as Argentina, Malaysia, Saudi Arabia, South Africa, Chile, the Philippines, and the United Arab Emirates. With a comprehensive quality inspection system and products that comply with international standards such as ISO, ASTM, and EN, we can provide customers with stable and reliable supply and technical support.
HDPE Quick Connect Fittings, with their efficiency, flexibility, and durability, are becoming an indispensable component in modern water and fluid systems. Whether you need agricultural irrigation systems, temporary water supply solutions, or industrial fluid connections, we can provide you with high-quality, cost-effective products and global service support.
