HDPE Puddle Flange

HDPE Puddle Flange is a waterproof sealing component designed for building through-wall pipe systems, mainly used to prevent moisture from penetrating through the pipe through the wall. This waterproof flange made of PE100 high-density polyethylene material has become an ideal choice to replace traditional metal waterproof flanges due to its excellent corrosion resistance, long-lasting sealing performance and simple installation process.

HDPE Puddle Flange Structure and Core Functions

HDPE Puddle Flange consists of three parts: HDPE flange, EPDM rubber water stop ring and stainless steel fastening system. Its working principle is based on multiple waterproof barrier design: the flange fits tightly with the surface of the building structure to form the first barrier; the elastic water stop ring forms the second seal on the outer wall of the pipe; the fastening system provides continuous compression to ensure long-term sealing effect.

The product can withstand 1.0MPa positive pressure and 0.1MPa negative pressure (for 60 minutes at 23℃), and the system allows a deviation angle of less than 15°, with excellent seismic resistance. Compared with metal flanges, HDPE waterproof flanges will not produce electrochemical corrosion and have a service life of more than 50 years.

Technical parameters and performance advantages

Material characteristics: PE100 or PE100RC grade HDPE, density 0.941-0.960g/cm³, melting point 142℃, applicable temperature range -60℃ to +60℃

Sealing performance: Use food-grade silicone rubber sealing ring, temperature resistance -60℃～+300℃, acid and alkali resistance, oil resistance, wear resistance

Connection method: Mechanical fastening connection, flexible connection and disassembly, reusable, easy for later maintenance

Waterproof level: Meet IP68 standard, completely prevent dust from entering and continuous immersion1

Product advantages include:

Excellent corrosion resistance: Can withstand acid and alkali liquids of PH2-PH12

Easy installation: No special tools are required, and the construction efficiency is more than 50% higher than the traditional method

Economical and efficient: The comprehensive cost is only two-thirds of the metal waterproofing solution

Environmental protection and safety: The material is non-toxic and odorless, and meets the drinking water hygiene standards

HDPE Puddle Flange application areas and installation points

HDPE waterproof flange is widely used in:

Waterproofing of basement wall-penetrating pipes

Water tanks and sewage treatment plants

Waterproofing of tunnel engineering pipes through walls

Waterproofing of building roof rainwater pipes through floor slabs

Installation precautions:

The embedded casing should be 2 specifications larger than the pipe

The flange and the structure surface should be clean and dust-free

Tightening bolts should be evenly applied to avoid over-tightening on one side

A 24-hour water pressure test is required after installation

Customized service and quality assurance

We provide comprehensive customized services, including:

Non-standard size customization (DN110-DN1200)

Special pressure level design

Different color identification requirements

Special service for batch engineering

The products strictly implement industry standards such as CJ/T250-2007 and provide 10-year quality assurance. HDPE Puddle Flange is becoming the standard configuration of modern building waterproofing projects with its reliable waterproof performance and economical system cost.

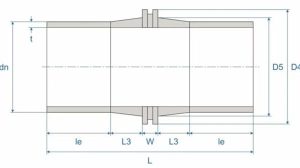

Specification
