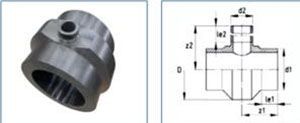

HDPE Customized Tee

HDPE Customized Tee is a key connector in modern pipeline systems. It is made of high-performance PE100 raw materials and has excellent physical and chemical properties and a long service life. As an important component for pipeline diversion, confluence or flow change, HDPE tees are widely used in municipal water supply and drainage, industrial fluid transportation, agricultural irrigation and other fields.

Core advantages of HDPE Customized Tee

Excellent corrosion resistance: can withstand various acids, alkalis and chemical media, with a service life of more than 50 years

Lightweight design: density is only 0.941~0.960g/cm³, easy to install and carry

Excellent mechanical properties: stable in the temperature range of -60℃ to +60℃

Environmental protection and safety: non-toxic and odorless, in line with drinking water hygiene standards

Easy installation: using hot melt butt technology, the joint strength is higher than the pipe itself

Technical parameters

Material grade: PE100 (third generation high-density polyethylene)

Pressure level: PN10/12.5/16 (10-16bar working pressure)

Temperature range: -60℃ to +60℃

Connection method: Butt Fusion

Product type: Equal-diameter tee/reducing tee (Reducing Tee)

HDPE Customized Tee Application Areas

HDPE Customized Tee is particularly suitable for:

Municipal water supply and drainage pipe network system

Corrosive media transportation in chemical enterprises

Agricultural irrigation system

Mine tailings transportation pipeline

Seawater desalination project

Customized service

We provide a full range of customized solutions, including:

Non-standard size customization

Special pressure level design

Interface customization (flange connection, socket connection, etc.)

Special color identification requirements

Exclusive service for bulk orders

HDPE Customized Tee has become an ideal choice to replace traditional metal pipes with its excellent performance and flexible customization capabilities, providing reliable and economical pipeline connection solutions for various engineering projects.

Product Specification
