Flexible Manhole Connection

Product Overview

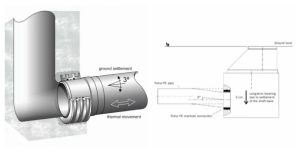

Flexible Manhole Connection is an innovative connection solution designed for drainage pipe engineering. It is made of high-density polyethylene (HDPE) material and can effectively solve the leakage problem caused by traditional rigid connections. The system can adapt to pipe displacement through a unique flexible design to ensure long-term reliable sealing performance.

Flexible Manhole Connection Advantages

Excellent sealing performance: multiple sealing structure design, waterproof level reaches IP68 standard

Excellent flexibility: can withstand ±5° angle deviation and ±20mm axial displacement

Long-lasting durability: HDPE material is corrosion-resistant and has a service life of more than 50 years

Easy to install: standardized design, construction efficiency increased by more than 40%

Economic and environmentally friendly: low maintenance cost, materials can be 100% recycled

Technical parameters

Flexible Manhole Connection structural features

Socket kit:

Reinforced rib design to improve structural strength

Built-in stainless steel retaining ring to ensure firm bonding with concrete

Special surface treatment to enhance bonding with concrete

Interface kit:

Multi-layer sealing design (rubber ring + water-expanding water stop strip)

Electrofusion connection area with temperature indicator strip

Anti-dislocation guide structure

Application areas

Municipal drainage network system

Pipeline connection of sewage treatment plant

Underground integrated pipe gallery

Industrial wastewater discharge system

Rainwater collection and utilization project

Key points for installing Flexible Manhole Connection

Buried socket kit before concrete pouring

Ensure that the connection parts are clean and dry

Electrofusion connection according to standard procedures

Air tightness test is required after installation

Pay attention to protecting the connection parts when backfilling

Quality assurance

The product complies with the requirements of GB/T 19472.2-2017 standard and provides 10-year quality assurance. We can also provide the following according to project requirements:

Special size customization service

Design of different pressure levels

Project site technical guidance

Professional installation training

Flexible Manhole Connection is gradually replacing traditional connection methods with its reliable performance and convenient installation features, and has become the preferred solution for modern drainage projects.

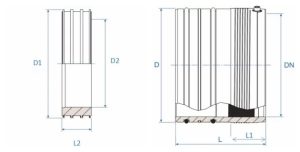

Manhole Connection Product Specification
