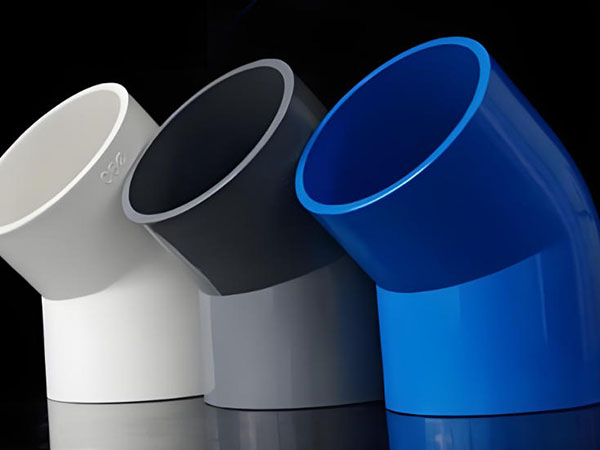

In the intricate web of building plumbing, whether for drainage, sewage, or ventilation systems, pipes rarely maintain a straight path. They must circumvent obstacles, change direction, and adapt to structural structures to safely and efficiently transport fluids or gases to their destination. In this process, a seemingly unassuming yet crucial component plays the role of “turning artist”—the 110mm PVC 45 degree bend. This article will delve deeper into this crucial pipe fitting.
110mm PVC 45 degree bend definition and basic functions
110mm: refers to the nominal diameter (DN) of this fitting, perfectly matching 110mm PVC-U pipe, one of the most common core specifications in building drainage systems.
PVC: Made of polyvinyl chloride (PVC), typically unplasticized polyvinyl chloride (PVC-U), it offers excellent corrosion resistance, high strength, low flammability, and a long lifespan.
45-degree elbow: Its function is to change the direction of a pipe at a 45-degree angle. Compared to the sharp turn provided by a 90-degree elbow, a 45-degree elbow provides a smoother, more fluid change in flow direction.
Its core functions are:
Change Flow Direction: It precisely changes the direction of a pipe by 45 degrees.
Reducing Flow Resistance: Compared to a 90-degree elbow, the 45-degree design significantly reduces flow resistance (water, sewage), minimizing head loss, ensuring smooth drainage, and reducing the risk of blockage.
Connecting Pipes: Using a socket or gluing method, it securely connects two pipe sections of the same diameter to form a continuous system.
Core Features and Advantages
Excellent Hydraulic Performance: The 45-degree bend is an optimal choice in fluid dynamics. It effectively changes direction without causing significant loss of flow energy or turbulence, effectively reducing the likelihood of blockage, especially for wastewater containing solid particles.
High Strength and Durability: PVC-U material offers high impact strength and ring stiffness, capable of withstanding internal pipe water pressure, external soil pressure (when buried), and general structural settlement.
Excellent Corrosion Resistance: PVC-U is completely impervious to sewage, wastewater, chemicals (common in the construction environment), and acids and alkalis in the soil. Unlike metal pipes, it will not rust or scale, resulting in a service life of over 50 years.
Smooth Interior: The PVC interior has an extremely low coefficient of friction, ensuring smooth water flow, resisting dirt adhesion, and exhibiting strong self-cleaning properties.
Lightweight and Easy Installation: A 110mm PVC 45-degree bend is extremely lightweight, significantly reducing labor intensity and making it easy to carry and install. Fireproof and flame retardant: PVC-U material is self-extinguishing and will go out immediately when away from fire, meeting the fire protection requirements of building materials.
Application Scenarios
The 110mm diameter elbow is the workhorse of building drainage systems, so 45-degree elbows are widely used:
Indoor drainage/sewage systems: This is their primary application. They are used to connect toilets, risers, floor drains, and other equipment, redirecting pipes beneath floors and within walls to ensure smooth connection between branch and main pipes.
Outdoor drainage systems: They are used in underground rainwater and sewage pipe networks in residential communities and municipal projects, providing smooth transitions when route changes are required.
Ventilation systems: They are used for 110mm diameter PVC ventilation ducts to redirect ventilation in roofs or walls, ensuring smooth gas discharge.
Electrical conduits: In some cases, they can also be used as conduits to protect cables and wires, providing bend protection within concrete structures.
Installation Guidelines and Precautions
Preparation: Inspect the pipe fittings and pipe openings to ensure they are free of cracks, burrs, and dirt. Clean the socket and spigot with a dry cloth to remove dust and moisture. Trial Assembly: Before applying glue, insert the pipe into the socket to the bottom and mark the insertion depth to ensure quick and accurate installation after application.
Glue Application: Use a dedicated PVC glue (such as “Moufeng” brand adhesive) and evenly apply it to the inside of the socket, then to the outside of the pipe insert. The application area should be slightly larger than the marked depth.
Installation and Maintenance: Quickly insert the pipe into the socket. Once it reaches the bottom of the marked depth, gently rotate it 1/4 turn (90 degrees) to ensure more even glue distribution. Note: Avoid excessive rotation, especially with 45-degree elbows, to avoid tilting the elbow. Maintain pressure for 15-25 seconds to prevent it from popping out.
Wipe and Curing: Wipe off any excess glue on the outside of the joint with a cloth. Keep the joint free of stress for 2-5 minutes after installation to allow for initial curing. Full curing will take several hours (refer to the glue instructions for details). During this time, water testing is strictly prohibited. Slope considerations: In the drainage system, it is necessary to ensure that the entire pipe system has sufficient drainage slope during installation, and the use of elbows should not affect the overall “water flows to the lower place”.
How to Choose a Quality Product
Appearance: High-quality products have a uniform color (usually milky white), smooth inner and outer surfaces, and are free of bubbles, impurities, and obvious scratches or dents.
Measure: Use a caliper to measure the diameter and wall thickness of the pipe fitting to ensure compliance with the national standard (GB/T 5836.2-2018). Inferior products often cut corners and have insufficient wall thickness.
Smell: High-quality PVC has a very light odor, while products made from inferior recycled materials have a pungent chemical odor.
Toughness: High-quality products are tough and resistant to breaking when pressed or gently dropped by hand; inferior products appear brittle.
Identify the brand and standards: Choose a reputable brand and check the product for clear markings indicating specifications, brand, and production standards.
The 110mm PVC 45 degree bend may be a small fitting, but it is an essential component of the lifeblood of modern buildings. Its scientific 45-degree design, the superior performance of PVC material, and its affordable price ensure efficient, quiet, and long-lasting drainage systems.
