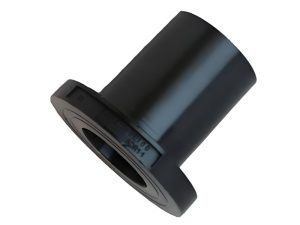

Definition and function of HDPE flange adapter
HDPE flange adapter is a key pipe fitting used to connect HDPE pipes with metal flanges or other pipes. Its main functions include:
Material conversion: realize seamless connection between HDPE pipes and steel, cast iron or PVC flanges.
Pressure sealing: ensure the sealing of the pipeline system under high pressure (such as PN6-PN16).
Flexible compensation: absorb the stress caused by thermal expansion and contraction of the pipeline or foundation settlement.
Main standards:
ISO 4427 (polyethylene pipeline system)
GB/T 13663 (polyethylene pipes for water supply)
ASME B16.5 (American standard flange)
EN 1092-1 (European standard flange)
Types of HDPE flange adapter
1. Classification by structure
| Type | Features | Typical Applications |
| Integral Flange Adapter | HDPE end joined by butt fusion or electrofusion; flange end made of carbon steel / stainless steel; produced as a single, monolithic piece | High-pressure pipelines, chemical industry |
| Split Flange Adapter | HDPE end secured with threads or a clamp; flange is detachable | Temporary pipelines, maintenance and replacement |
| Loose (Swivel) Flange Adapter | Flange can rotate to aid alignment during installation; well-suited to complex conditions | Long-distance pipelines, areas subject to ground settlement |
2. Classification by connection method
Hot-melt flange adapter: HDPE pipe is welded by heating, suitable for permanent connection.
Electrofusion flange adapter: Built-in resistance wire, fused after power on, suitable for installation in small spaces.
Mechanical flange adapter: Bolt-fastened sealing ring, removable, suitable for maintenance scenarios.
Core applications
1. Municipal water supply and drainage system
Water supply network: Steel flange connecting HDPE main pipe and pump station/valve.
Sewage treatment: Corrosion-resistant, suitable for pipeline systems containing acid and alkali wastewater.
2. Oil and gas industry
Liner repair: After lining the old steel pipe with HDPE pipe, connect it with a flange adapter.
Gathering pipeline: Suitable for high-pressure environment ≤20MPa (special enhanced design required).
3. Chemical and industrial pipelines
Transport of acid and alkaline media: HDPE is corrosion-resistant and safer to adapt to 316 stainless steel flanges.
Cooling water system: Flexible connection reduces vibration transmission and protects pumps and valves.
4. Agricultural irrigation
Drip irrigation system: connect HDPE branch pipe with metal filter/fertilizer equipment.
Installation method of HDPE flange adapter
1. Hot melt connection steps
Cutting alignment: Make sure the HDPE pipe end is flat and there is no gap with the adapter port.
Heating and welding: Use a hot melt machine to heat to 210±10℃ and maintain pressure until cooling.
Flange tightening: Tighten the bolts in a cross-cross order to avoid partial load leakage.
2. Key points of electric fusion connection
Voltage control: Set according to the manufacturer’s parameters (usually 36-48V).
Welding time: DN110 adapter is about 300 seconds, and the observation hole overflows the molten material to pass.
3. Mechanical connection precautions
Sealing ring selection: EPDM rubber is suitable for high temperature water, and NBR has good oil resistance.
Torque requirement: The recommended torque of M16 bolts is 40-60N·m to avoid deformation of HDPE caused by overtightening.
Selection and market reference
1. Key selection parameters
| Parameter | Recommended Value |
| Pressure Rating | PN6 (0.6 MPa), PN10 (1.0 MPa) |
| Flange Standard | EN 1092-1 (European Standard), ASME B16.5 (American Standard) |
| HDPE Material | PE100 (High Strength), PE80 (Economical Option) |
2. Price range (2024 market)
| Specification (DN) | Unit Price (CNY/Piece) |
| DN50 | 80–120 |
| DN110 | 150–250 |
| DN200 | 300–500 |
3. FAQ
Q: Can HDPE flange adapters be used for gas pipelines?
A: It must comply with GB 15558.1 standard, and the flange must be treated with anti-static treatment.
Q: What are the advantages compared with PVC flange adapters?
A: HDPE has stronger impact resistance (no brittle cracking at -60℃) and a service life of up to 50 years.
HDPE flange adapter is a key component of modern pipeline systems. Correct selection and installation can greatly improve system reliability. It is recommended to give priority to PE100 material and PN10 grade products, and strictly follow the torque specifications to ensure sealing.
