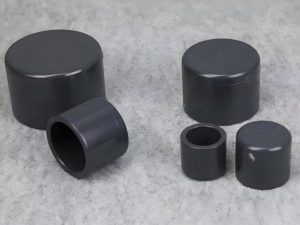

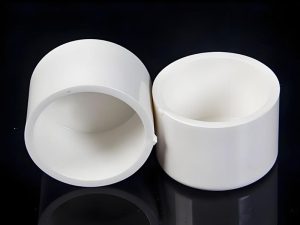

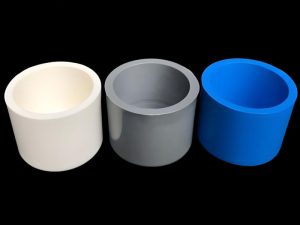

What is a 4-inch pvc cap?
A 4 inch pvc cap is a fitting used to seal the end of a PVC pipe, and is suitable for 4-inch (about 110 mm) PVC pipes. It is made of polyvinyl chloride (PVC) material and is fixed to the pipe end by gluing, threading or crimping to seal, prevent dust, leak or protect the inside of the pipe.
PVC pipe caps are common terminal fittings in pipe systems and are widely used in building drainage, electrical threading, agricultural irrigation and other fields.
Core uses of 4-inch pvc caps
Sealing pipe ends
During pipeline construction, unconnected pipe ends need to be temporarily or permanently closed to prevent debris, mud or insects from entering. For example: protection of building drainage pipes before they are connected to the main system.
Leakage and corrosion prevention
In chemical or liquid transportation scenarios, pipe caps can prevent medium leakage or external moisture and gas from corroding the inner wall of the pipe.
Safety protection
Cover the sharp edges of the pipe mouth to prevent scratches on personnel, especially at construction sites or in exposed electrical threading pipes.
System Testing
When testing the pipeline pressure, the pipe cap is used to close the port to ensure the accuracy of the test.
Features and advantages of 4 inch pvc cap
Material characteristics
Corrosion resistance: PVC has strong resistance to chemicals such as acids, alkalis, and salts, and is suitable for a variety of environments.
Lightweight and durable: Lightweight (only 1/5 of metal pipe caps), but with high compressive strength and a service life of more than 20 years.
Waterproof insulation: Non-conductive, suitable for electrical engineering; completely waterproof, can be used underground or in humid environments.
Easy to install
Adhesive type: Fixed by PVC special glue, strong sealing, suitable for permanent closure.
Threaded type: Internal or external thread design, removable, easy for later maintenance.
Crimp type: No tools required, direct press installation, suitable for temporary closure.
Economic and environmentally friendly
PVC materials are inexpensive and recyclable, meeting green building standards.
How to choose the right 4 inch pvc cap?
Match the pipe type
Confirm whether the pipe is SCH 40 (standard wall thickness) or SCH 80 (thickened type), and choose the pipe cap with the corresponding pressure rating.
If used for drainage pipes (such as PVC-U), you need to choose a model with a waterproof rubber ring.
Choose the style according to the purpose
Flat cap: the most common, used for general sealing.
Vent cap: with a hole on the top to balance the air pressure inside and outside the pipe (such as septic tank ventilation).
Decorative cap: smooth surface, color consistent with the pipe, improve aesthetics.
Pay attention to standard certification
Choose products that comply with GB/T 5836 (Chinese standard) or ASTM D2466 (international standard) to ensure reliable quality.
Installation steps and precautions
Adhesive installation
Clean the contact surface between the pipe and the pipe cap, apply PVC glue and quickly tighten it, and let it stand for 24 hours to cure.
Threaded installation
Wrap the raw tape to enhance the sealing, and check for leaks after tightening.
Precautions
Avoid using in high temperature (>60℃) or direct ultraviolet light environment to prevent PVC aging.
Chemical pipelines need to confirm whether the PVC material is resistant to medium corrosion (e.g. concentrated sulfuric acid will damage ordinary PVC).
FAQ
Q: Can 4-inch PVC caps be used for hot water pipes?
A: Not recommended. The upper temperature limit of ordinary PVC is 60℃, and hot water pipes must be made of CPVC material (temperature resistance 90℃).
Q: The price difference between pipe caps and other PVC accessories is large. How to avoid pitfalls?
A: Low-priced products may use recycled materials and are prone to brittle cracks.
Q: What should I do if the pipe cap falls off?
A: If the adhesive type falls off, it needs to be re-grinded and glued; the threaded type can be added with sealant or raw tape.
Although the 4-inch PVC cap is a small accessory, it is crucial in the pipeline system. Correct selection and installation can greatly reduce maintenance costs and ensure long-term stable operation of the system.
